صمام فحص التدفق المحوري، مقاس 6 بوصات، سعة 300 رطل، نوع رقاقة، هيكل SS2205
加载中...

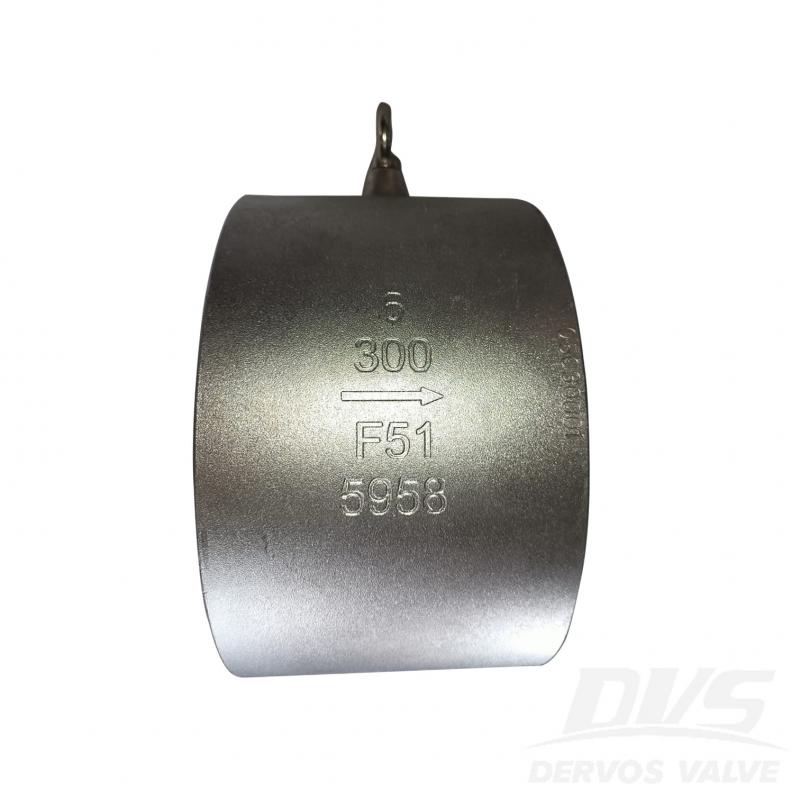

صمام فحص التدفق المحوري، مقاس 6 بوصات، سعة 300 رطل، نوع رقاقة، هيكل SS2205، API594

صمام فحص التدفق المحوري مقاس 6 بوصات، سعة 300 رطل، مصنوع وفقًا لمعيار API594. جسم الصمام مصنوع من SS2205. يتميز بخصائص هيكلية من النوع الصامت، وطريقة توصيله هي نوع رقاقة.

  • دفع:

    30% when order confirmed, 70% before shipment
  • أصل المنتج:

    China
  • اللون:

    Customization
  • ميناء الشحن:

    Shanghai, China
  • المهلة:

    30~60 days Ex Works after order confirmation
  • Material:

    SS2205
الاستفسار الآن
تفاصيل المنتج

وصف المنتج

يكتب

صمام فحص التدفق المحوري

مقاس

6 بوصة

ضغط

300 رطل

اتصال

رقاقة

مادة الجسم

SS2205

معيار التصميم

API 594

أبعاد وجهاً لوجه

API 594

أبعاد الحافة النهائية

ANSI B16.5

رمز الاختبار والتفتيش

API 598

درجة حرارة

-29 ~ 200درجة مئوية

الوسيلة المناسبة

المياه والنفط والغاز

سمات

2. يتم مطابقة قرص الصمام والمقعد بدقة، ويمكن تجهيزهما بأختام معدنية أو أختام ناعمة، مع ختم موثوق به وعدم وجود تسرب.

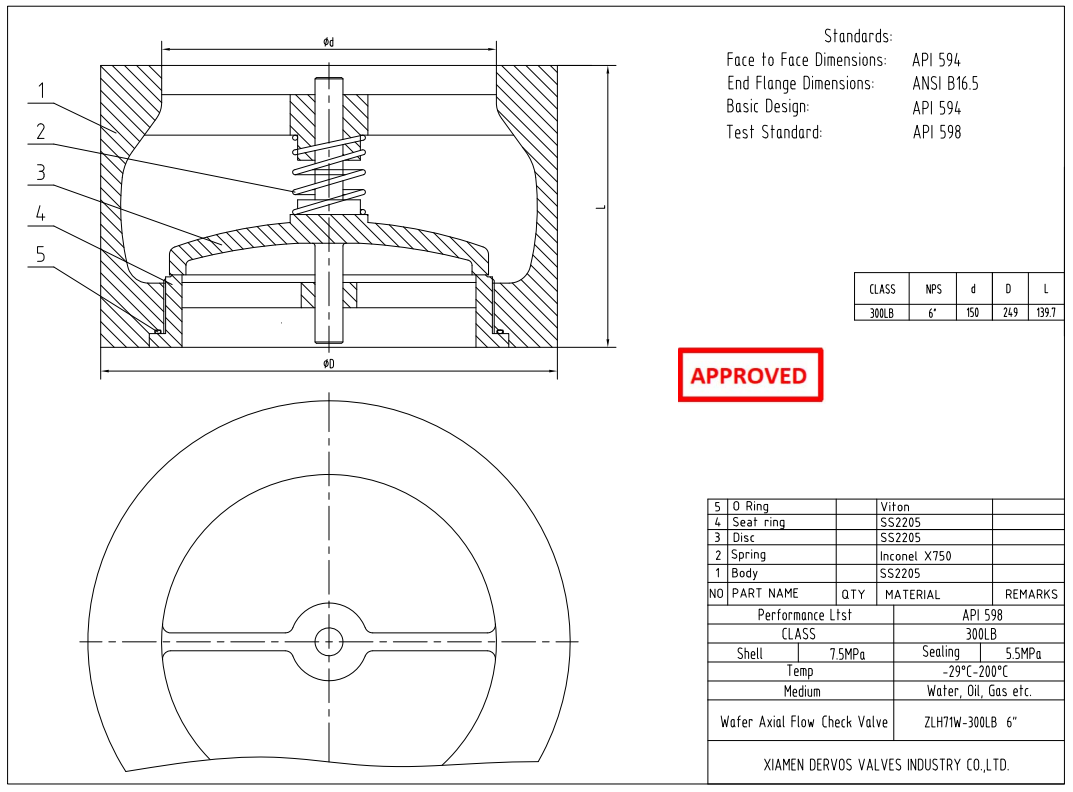

الرسم الفني

6" 300LB Axial Flow Check Valve, Wafer Type, Body SS2205, API594

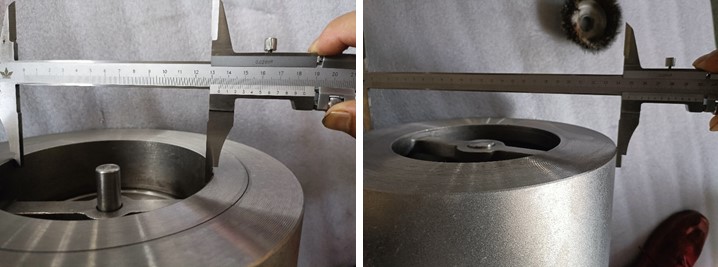

فحص الأبعاد

6" 300LB Axial Flow Check Valve, Wafer Type, Body SS2205, API594

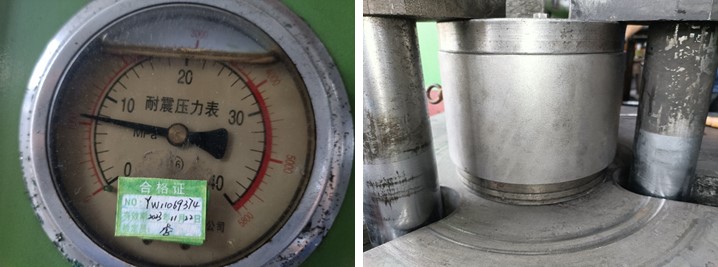

اختبار الضغط

6" 300LB Axial Flow Check Valve, Wafer Type, Body SS2205, API594

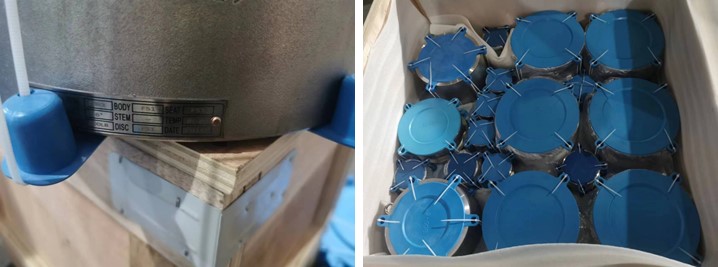

لوحة الاسم والتغليف

6" 300LB Axial Flow Check Valve, Wafer Type, Body SS2205, API594

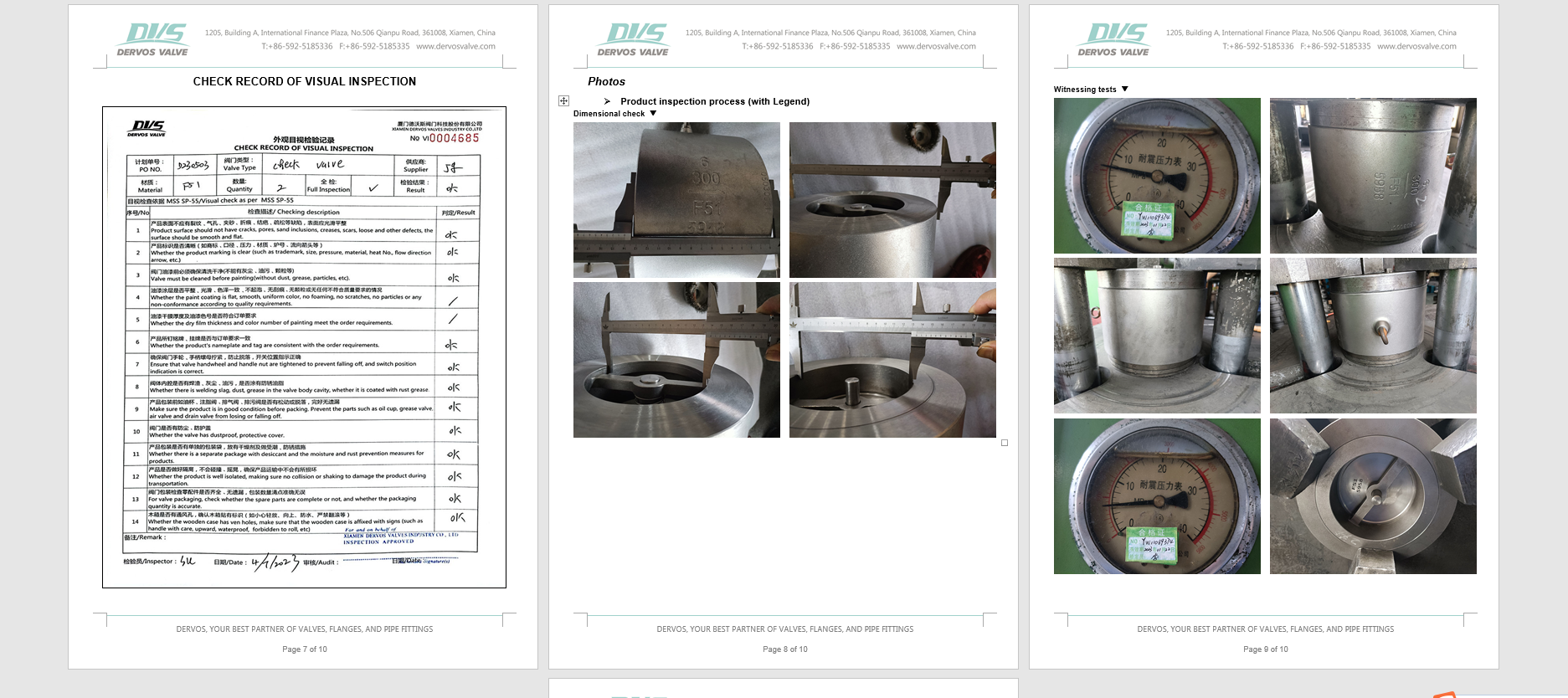

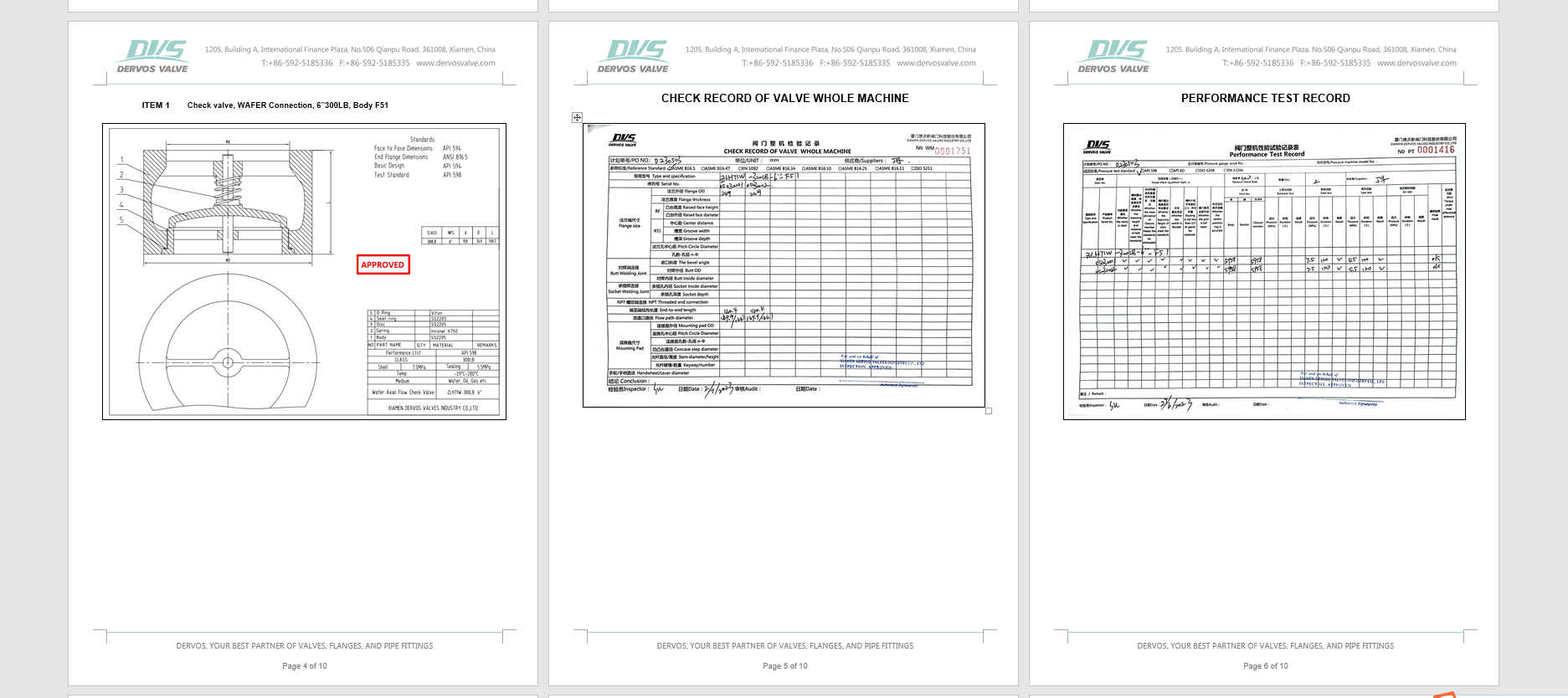

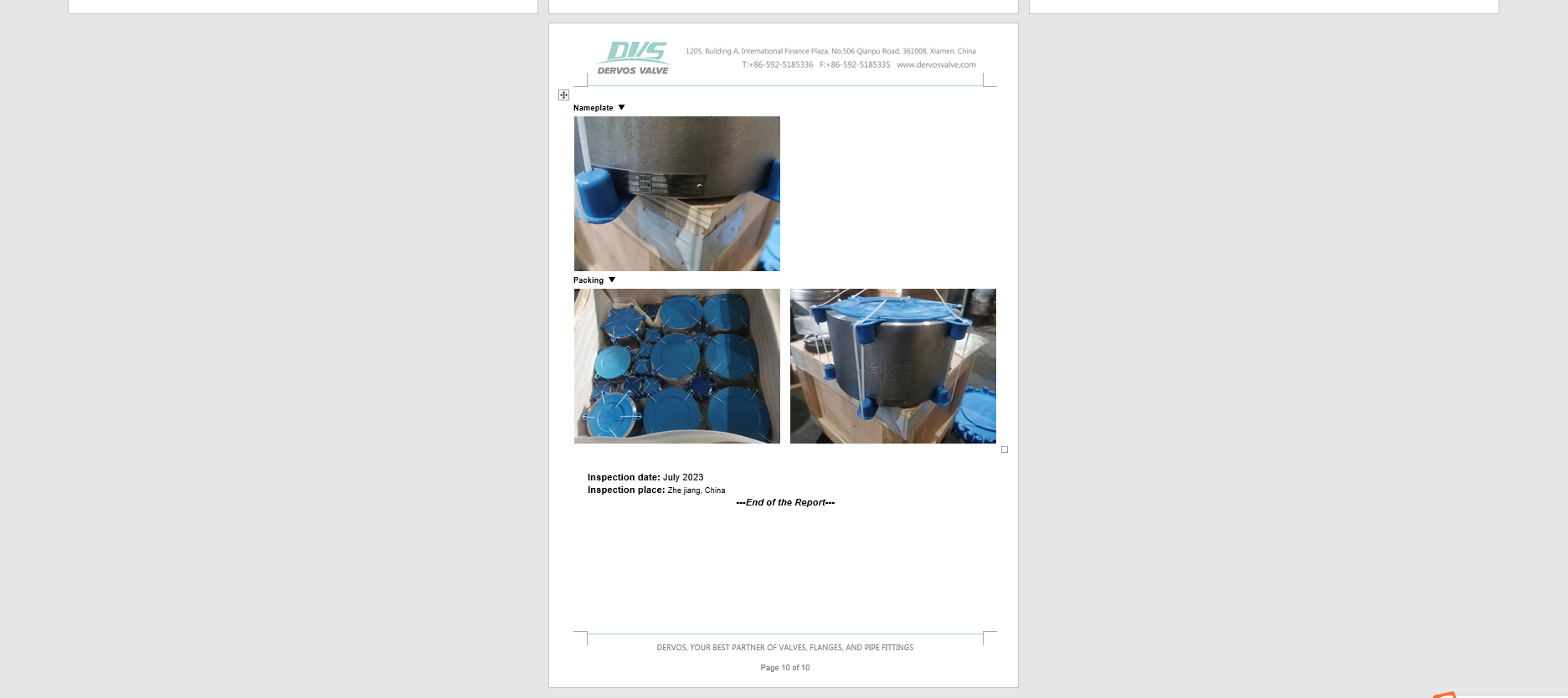

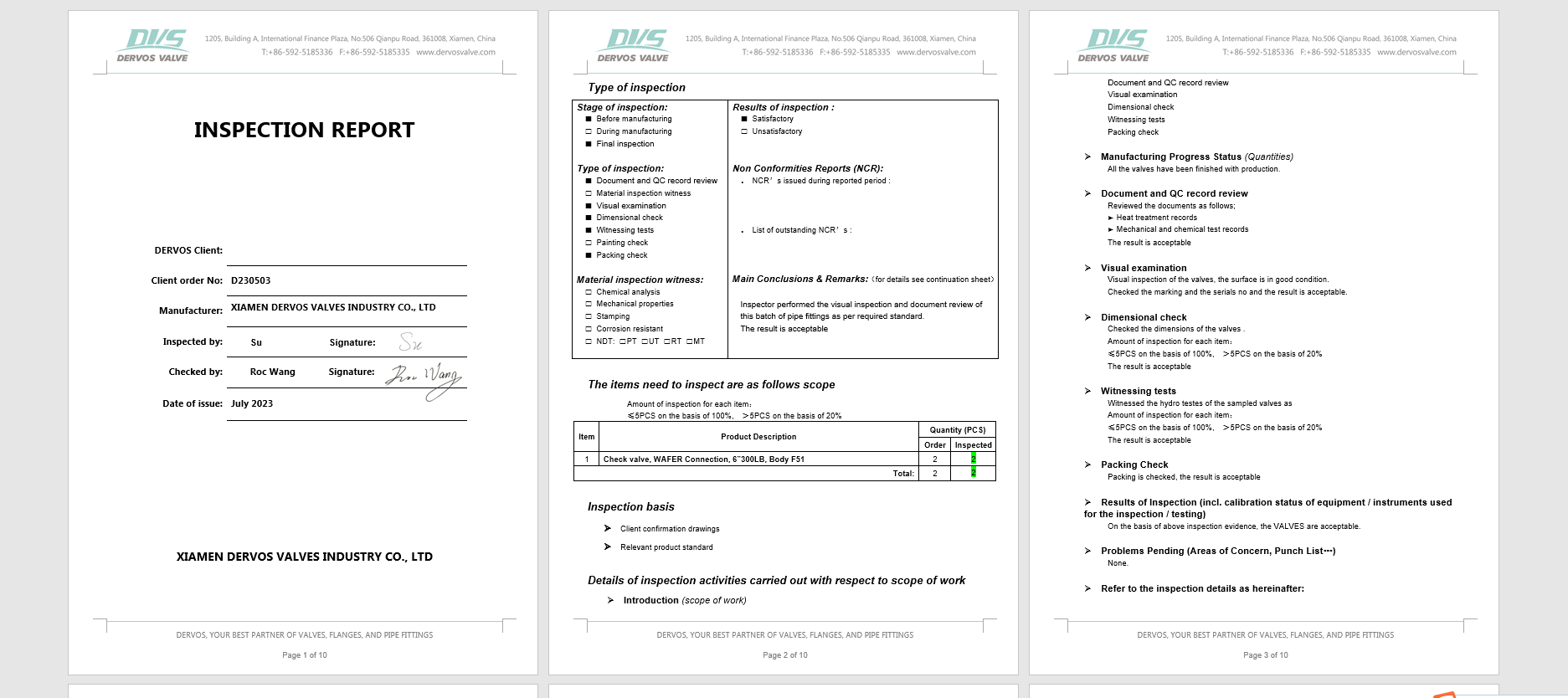

تقرير التفتيش

6" 300LB Axial Flow Check Valve, Wafer Type, Body SS2205, API594

6" 300LB Axial Flow Check Valve, Wafer Type, Body SS2205, API594

6" 300LB Axial Flow Check Valve, Wafer Type, Body SS2205, API594

6" 300LB Axial Flow Check Valve, Wafer Type, Body SS2205, API594
