psb صمام العالم وزن الجسم 1500 رطل
加载中...

ضغط الكرة صمام مختومة غلوب 6 بوصة 1500 رطل من وزن الجسم

  • دفع:

    30% T/T When Order, 70% T/T Before Shipment
  • أصل المنتج:

    China
  • اللون:

    Customization
  • ميناء الشحن:

    Shanghai China
  • المهلة:

    35~60 days Ex Works After Order Confirmation
  • Material:

    Carbon Steel Globe Valve, Cast Steel Globe Valve
  • Method of Operation:

    Gearbox Operation Globe Valve
الاستفسار الآن
تفاصيل المنتج
يحتوي صمام الكرة الأرضية بحجم 6 بوصة psb على ضغط تصميم يبلغ 1500 رطل ونهاية لحام بعقب وعلبة تروس. يتكون صمام الكرة الأرضية الكامل من جسم الكربون الصلب wcb ومواد 5 تقليم.

تفاصيل سريعة

نوع

كره ارضيه   صمام

بحجم

6 "

التصميمالضغط

صف دراسي   1500

اعمال بناء

الضغط   غطاء محرك الختم ، قرص نوع القابس ، ساق ارتفاع

الإتصالنوع

بعقب   لحام

عمليةنوع

شطبة   opearted علبة التروس

كود التصميم

بكالوريوس   1873

من النهاية إلى النهاية

اسمى   ب 16.10

نهاية الاتصال

اسمى   ب 16.25

الضغط & أمبير ؛   درجة الحرارة

اسمى   ب 16.34

اختبار & أمبير ؛   معيار التفتيش

واجهة برمجة تطبيقات   598

مواد الجسم

المصبوب   WCB الصلب

تقليممواد

تقليم   لا. 5

نطاق درجة حرارة

-29~ +425

تطبيق

wog

الأصل

الصين


المواد و أمبير ؛ البعد

High Pressure Globe Valve Manufacturers


NPS   د صف دراسي 2 2 1/2 3 4 6 8
50 65 80 100 150 200
l (rf) l1 (وزن الجسم) 900 رطل 368 419 381 457 610 737
1500 رطل 368 419 470 546 705 832
2500 رطل 451 508 578 673 917 1022
l2 (rtj) 900 رطل 371 422 384 460 613 740
1500 رطل 371 422 473 549 711 841
2500 رطل 454 514 584 683 927 1038
ح (أوبن) 900 رطل 550 605 678 798 930 1230
1500 رطل 550 605 866 956 1260 1263
2500 رطل 560 720 755 1230 1791 2086
ث 900 رطل 350 350 400 450 458 610 *
1500 رطل 400 400 450 560 610 * 610 *
2500 رطل 400 450 560 310 * 610 * 760
الوزن (rf) 900 رطل 78 108 102 142 400 960
1500 رطل 85 110 135 230 660 1590
2500 رطل 140 168 247 620 1500 3200
الوزن (وزن الجسم) 900 رطل 66 91 87 128 355 868
1500 رطل 77 101 122 209 595 1440
2500 رطل 100 118 180 438 1148 2594
*جير عادي   ينصح عامل التشغيل


لا جزء اسم الكربون الصلب ل   أستم أشابة   الصلب ل astm غير القابل للصدأ   الصلب ل astm
WCB wc6 wc9 ج 5 راجع 8 CF 8M راجع 3 CF3M
1 الجسم a216 wcb a217 w6 a217 wc9 a217 c5 a351 cf8 a351 cf8m a351 cf3 a351 cf3m
2 حلقة مقعد أ 105 a182 f11 a182 f22 a182 f5 a182 f304 a182 f316 a182 f304l a182 f316l
3 القرص أ 105 a182 f11 a182 f22 a182 f5 a182 f304 a182 f316 a182 f304l a182 f316l
4 إيقاف a182 f6 a182 f304 a182 f304 a182 f316 a182 f304l a182 f316l
5 الجوز القرص a182 f6 a182 f304 a182 f304 a182 f316 a182 f304l a182 f316l
6 قبعة ss الجرح الجرح الحلزوني أو   ss دوامة الجرح ptfe
7 ختم الجسم الجرافيت المرن + 316
8 حشية التعديل و ٦ و ٦ ص 316
9 التعبئة الجذعية الجرافيت المرن + 316
10 الجوز الغدة أ 194 2 ساعة أ 194 8
11 ييبولت الغدة أ 193 ب 7 أ 193 ب 8
12 دبوس الكربون الصلب أو غير القابل للصدأ   صلب
13 غطاء الجوز الكربون الصلب أو غير القابل للصدأ   صلب
14 السدادة a182 f6 a182 f304 a182 f316 a182 f304l a182 f316l
15 شفة الغدة a216 wcb a351 cf8
16 نير a216 wcb a351 cf8
17 الجوز الجذعية a439 d2 أو b148-952a
18 برغي الكربون الصلب
19 عقارب حديد الدكتايل أو الكربون   صلب
20 لوحة الاسم الفولاذ المقاوم للصدأ أو الألومنيوم
21 غسالة الكربون الصلب
22 البندق الكربون الصلب أو غير القابل للصدأ   صلب

المعرفة ذات الصلة

لماذا نستخدم غطاء ختم الضغط؟


ضغط مختوم غالبًا ما يستخدم غطاء المحرك للصمامات ذات الضغط التصميمي العالي. كلما ارتفع يزداد الضغط الداخلي ، كلما زادت قوة الختم بين الجسم وغطاء المحرك يصبح.


لغطاء محرك مثبت يتم توصيل الصمامات والجسم وغطاء المحرك بواسطة الأزرار والصواميل مع حشية بين شفة وجوه لتسهيل الختم. ومع ذلك ، كضغط النظام يزداد احتمال التسرب من خلال الجسم وغطاء المحرك.

ولكن للضغط صمام مختوم ، "غطاء محرك السيارة سحب المسامير "لسحب غطاء المحرك لأعلى وإغلاقه ضد حشية ختم الضغط. هذا هو السبب في زيادة الضغط ، أداء طوقا ختم الضغط بين الجسم وغطاء المحرك يصبح أفضل.


اترك رسالة

إذا كنت مهتما في منتجاتنا و تريد أن تعرف المزيد من التفاصيل,يرجى ترك رسالة هنا وسوف نقوم بالرد عليك بأسرع ما يمكن.

منتجات ذات صله

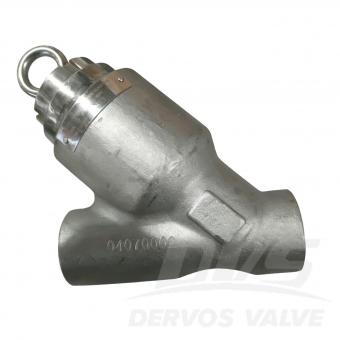

خمسة آلاف ومائتان واحد
